MagicaVoxel

MagicaVoxel is a free, lightweight 8-bit voxel art editor and interactive path tracing renderer. It is the primary tool used for creating voxel models for Voxel Playground.

Download

You can download MagicaVoxel from the official website: https://ephtracy.github.io/

Usage

Use MagicaVoxel to create your 3D models and save them as .vox files. These files are used as the source for voxel data in your mods.

Material ID Mapping

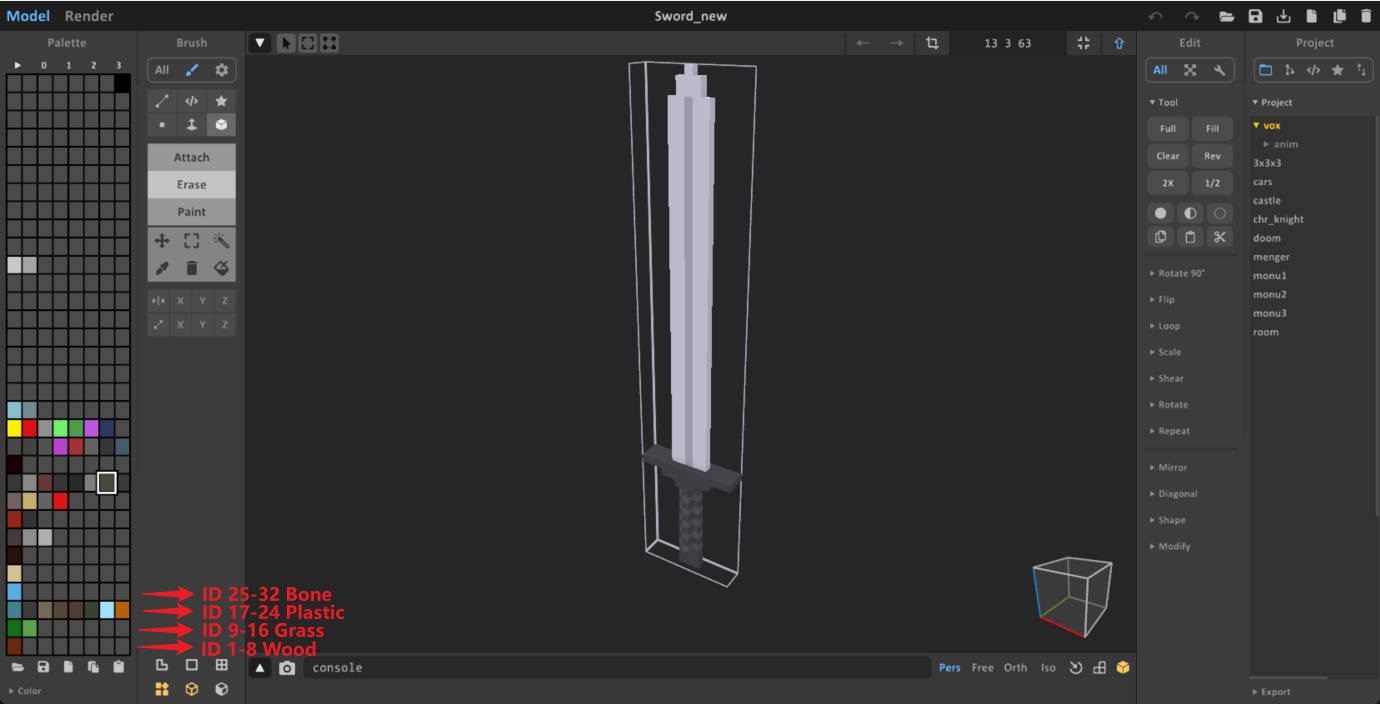

In Voxel Playground, the physical properties of a voxel (such as hardness, flammability, and visual type) are determined by its Material ID. When you create a model in MagicaVoxel, the game uses the Color Palette Index of each voxel to assign its Material ID.

Mapping Logic

The mapping divides the palette into groups of 8. Every 8 colors in the MagicaVoxel palette correspond to 1 Material ID.

The formula used by the game is: Material ID = Ceil(Palette Index / 8)

• Palette Indices 1-8 \(\rightarrow\) Material ID 1
• Palette Indices 9-16 \(\rightarrow\) Material ID 2
• Palette Indices 17-24 \(\rightarrow\) Material ID 3
• ...and so on.

Note: The maximum supported Material ID is 31. Any palette index that maps to a value higher than 31 will be clamped to ID 31.

Editing IDs in Unity

If you need to adjust Material IDs after importing—for example, to fix mapping errors or batch-replace materials—you can use the Voxel Data Editor. It allows you to visualize and reassign IDs directly in Unity without modifying the original MagicaVoxel file.

Quick Reference

Below is a quick reference for the first few ranges. For the complete list of Material IDs and their specific properties (Hardness, Metallic, etc.), please consult the Material ID and Visual documentation.

Palette Index Range	Material ID	Material Name
1 - 8	1	Wood
9 - 16	2	Grass
17 - 24	3	Plastic
25 - 32	4	Bone
33 - 40	5	Skin
41 - 48	6	Dirt
49 - 56	7	Stone
57 - 64	8	Brick
65 - 72	9	Concrete
73 - 80	10	Asphalt
81 - 88	11	Crust
89 - 96	12	Metal
97 - 104	13	Glow
105 - 112	14	Glass
113 - 120	15	HarderSkin
121 - 128	16	HardSkin
129 - 136	17	FistSkin
137 - 144	18	Armor
145 - 152	19	Water
153 - 160	20	EnergyShield
161 - 168	21	PierceBullet
169 - 176	22	CarbonSteel

Import Into Editor

Once you have created your .vox models, you need to import them into the ModToolkit Editor to use them in your mods. This process involves the Asset Processor.

1. Open the Asset Processor.
2. Import your .vox files.
3. Click Convert to generate the prefabs.

Post-Import Configuration

After conversion, the system generates a prefab for your model. This prefab will typically have a VoxelObjectProxy component attached, which handles rendering, physics, and persistence.

Naming for scene

When creating a complex scene file in MagicaVoxel that contains multiple objects, you can control how each object is imported into the game by adding specific prefixes to their names in the MagicaVoxel "World" editor.

The importer checks these prefixes to assign the correct physical properties, collision layers, and behaviors.

Prefix Rules

Prefix	Type	Description	Properties
A_	Static Environment	Used for the main static geometry like floors, walls, and terrain.	• Layer: Building • Tag: "Floor" • Physics: Kinematic (Immovable) • Destructible: No
B_	Dynamic Prop	Used for free-moving objects like crates, barrels, or debris.	• Layer: Item • Physics: Dynamic (Affected by gravity) • Destructible: Yes
C_	Strong Connected	Used for objects that need to be firmly anchored to the world (e.g., fixtures).	• Layer: Item • Physics: Dynamic • Destructible: Yes • Special: Adds an UnyieldingArea component with a large collider to stabilize connection.
D_	Weak Connected	Used for hanging or jointed objects (e.g., lamps, signs).	• Layer: Item • Physics: Dynamic • Destructible: Yes • Special: Adds an AttachmentPoint (facing down) and configures a joint.

Default Behavior

If an object name does not start with any of the specific prefixes (e.g., MyTable, Chair):

• Type: Static Prop
• Layer: Item
• Physics: Kinematic (Immovable)
• Destructible: No

Recommendation: Always use A_ for ground and structural elements to ensure they are recognized as "Floor" for navigation and physics interactions. Use B_ for any object you want the player to interact with physically.
